1. Validating Mechanical Engineering Resins in Prototype Molds
2. Single Cavity versus Multi Cavity Tooling Economics
Validating Mechanical Engineering Resins in Prototype Molds
Question: Why are prototype injection molds necessary for engineering validation? 3D printed photopolymers cannot replicate the isotropic tensile strength, impact toughness, and heat resistance of genuine molded thermoplastics.
Sourcing functional parts molded from genuine engineering plastics like ABS, Nylon (PA), o Policarbonato (PC) provides authentic material behavior under dynamic loading. Sourcing functional parts from a professional Servizio di prototipazione is ideal for early form studies, but those CAD files often violate mass-production injection molding physics. Symmetrical component designs simplify holding fixtures, reducing initial setup labor hours dramatically. Standardizing non-critical clearances allows high-speed milling spindles to clear raw stock quickly, maximizing cutting efficiency.
Sourcing single-cavity soft molds lowers your baseline injection molding prototype cost while delivering 100% production-representative physical samples. Slicing CAD files precisely allows experienced toolmakers to analyze parting line shut-offs manually. Sourcing these soft molds allows product developers to validate actual production material properties before committing to hardened steel. Sourcing high-quality billet metals protects your developmental budget from material premium markups.
- Authentic isotropic strength—Injection molded thermoplastics deliver uniform physical yield strength across all coordinate axes
- Accurate shrinkage verification—Molding real resins allows engineers to measure actual post-ejection part contraction rates
- Thermal resistance testing—Production thermoplastics survive high-temperature baking tests without warping or melting
Single Cavity versus Multi Cavity Tooling Economics
Question: How much money does a single-cavity prototype mold save? Single-cavity prototype molds reduce initial tooling expenses by 60% to 80% compared to multi-cavity production tools.
Selecting single-cavity mold configurations represents the most effective DFM strategy for keeping early prototype tooling expenses low. CNC milling a single core and cavity insert requires significantly fewer spindle hours than cutting four or eight identical cavities. Sourcing a dedicated Servizio di attrezzaggio rapido using Alluminio o morbidi P20 Acciaio per utensili core inserts delivers genuine injection-molded components from production-grade resins within weeks. Soft metal cavities dissipate heat rapidly, shortening cooling cycles and boosting production speeds.
Calculating your overall rapid tooling cost requires evaluating how initial CapEx distributes across your target batch size. Sourcing functional Servizio di lavorazione CNC parts or short-run aluminum molds allows hardware startups to validate sales demand before locking in high-volume steel tools. This technical comparison table highlights baseline cost and performance differences across mold cavity configurations:
| Mold Configuration | CapEx iniziale per utensili | Machine CNC Hours | Primary Engineering Use |
|---|---|---|---|
| Single-Cavity Aluminum | Low ($1,500 – $3,500) | Minimum (1 to 2 days milling) | NPI design validation, functional testing |
| Multi-Cavity Production Steel | High ($20,000 – $80,000+) | Extreme (2 to 4 weeks milling) | Mass series production, extreme volume |
Passare a un Servizio di stampaggio a iniezione requires a complete overhaul of raw prototype CAD geometries to accommodate mold release physics. Sourcing your copies from a partner with extensive in-house capabilities ensures you receive honest, cost-saving advice for your specific hardware program. Slicing CAD files precisely allows experienced toolmakers to analyze parting lines, draft angles, and wall thicknesses using advanced mold flow simulation software.
Splicing raw CAD files precisely allows experienced toolmakers to analyze parting line shut-offs manually. Sourcing early DFM reviews simplifies split line layouts, eliminating the need for expensive mechanical sliders in rapid molds. Early validation prevents expensive engineering changes when scaling up to high-volume injection molding.
Utilizing MUD Bases to Lower Prototype Tooling CapEx
Question: How do MUD frames lower prototype injection mold costs? Master Unit Die (MUD) frames reuse universal master mold bases, allowing toolmakers to machine only the inner companion core inserts.
Ottimizzare il tuo injection molding prototype cost is achieved by utilizing standard modular unit die (MUD) mold frames to house custom core inserts. Using standard MUD frames avoids custom mold base machining, reducing tooling costs by up to 50 percent. Sourcing these modular options ensures your development budget remains highly controlled during initial scaling. Custom components undergo rigorous coordinate metrology checks to confirm exact dimensional compliance.

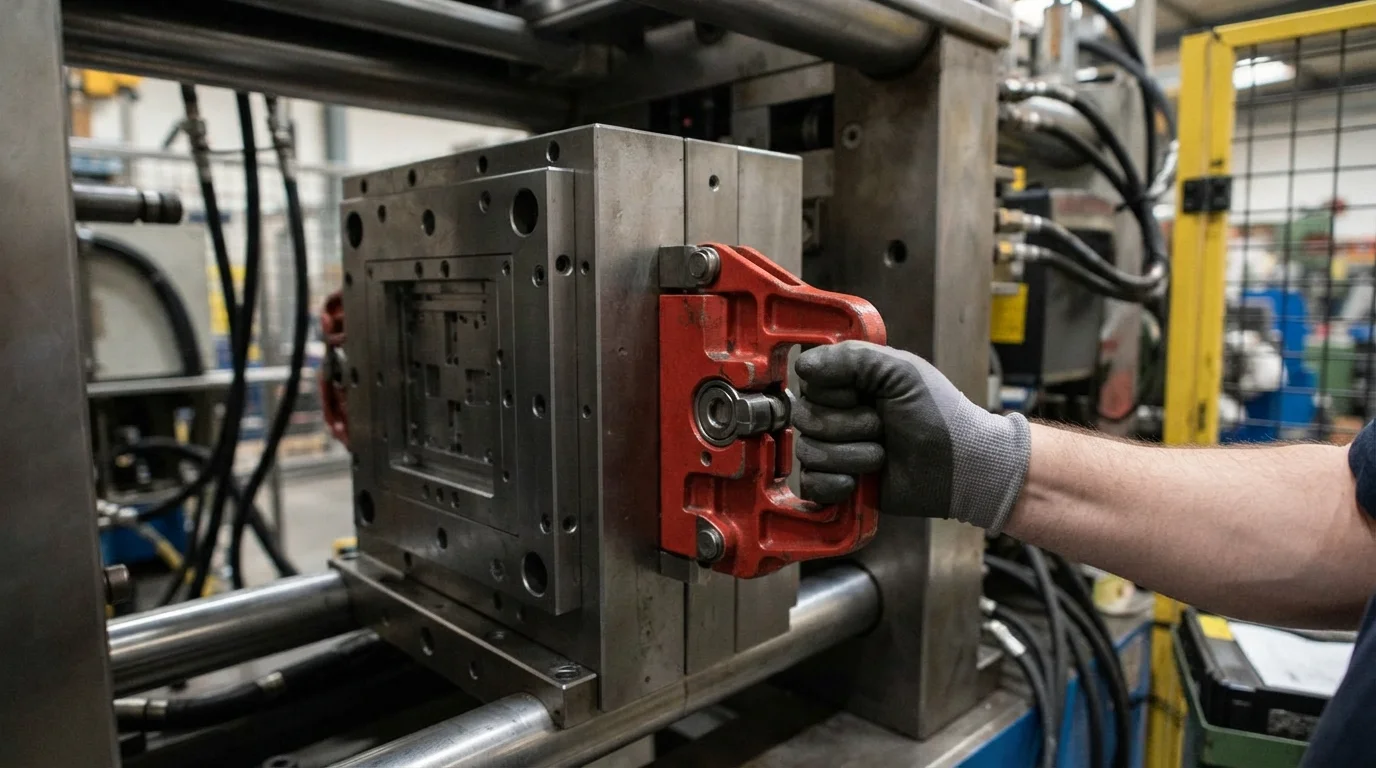

- Reusing master mold frames—Universal MUD bases remain clamped in the press, eliminating custom frame machining
- Machining companion inserts only—Toolmakers cut only the small AL7075 aluminum core plates, saving 60% on raw metal
- Fast press changeovers—Operators swap companion insert dies in 15 minutes without unmounting the frame
